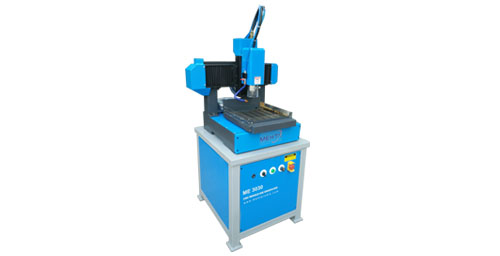

CNC Engraving Machine ME 3030
Overview of CNC Engraving Machine ME 3030
ME-3030 is a new CNC Engraving Machine developed for small moulds and metal engraving. The machine has a double column design, imported liner guide and ball screw. It is small, fast, sturdy and accurate. ME-3030 has NC studio controller and It is easy to operate and easy to learn. You can see the simulation before start program. If there is a power failure, or tool breakage, the machine can remember the starting point. The machine gives very low price/performance ratio and can be used broad range of applications.
Applications of CNC Engraving Machine ME 3030
 |
 |
 |
||
 |
 |
 |
||
Technical Specifications
| Model | ME-3030 |
| Outer Dimension(W x L x H) | 780 x 950 x 1550 mm |
| Machining Area | 300 x 300 mm |
| Spindle | 1.5 KW (Air cooled Italian spindle) |
| Spindle RPM | 18000 max |
| Z Max. Traveling | 100 mm |
| Distance between Bed and Gentry | 100 mm |
| Cutting Tool Diameter | Æ3,Æ4,Æ6,Æ8 |
| Repeated Location | 0.005 mm |
| Max Running Speed | 7 m/min |
| Weight | 375 Kg |
| Power Supply | AC 320V / 50Hz |
| Above Specifications are subject to change without prior notice | |
