Solid Carbide Two Flute Spiral Bits

	PART NO	C.D (mm)	C.L. (mm)	S.D. (mm)	Z
	MT-SR1.02.12	2	12	3	2
	MT-SR1.03.20	3	20	3	2
	MT-SR1.04.25	4	25	4	2
	MT-SR1.06.30	6	30	6	2
	MT-SR1.06.35	6	35	6	2
	MT-SR1.08.30	8	30	8	2
	MT-SR1.08.40	8	40	8	2
	MT-SR1.10.40	10	40	10	2
	MT-SR1.12.40	12	40	12	2

Solid Carbide Two Flute Spiral Ball Nose Tool

	PART NO	C.D (mm)	C.L. (mm)	S.D. (mm)	Z
	MT-BN2.2.10	2	10	3	2
	MT-BN2.3.15	3	15	3	2
	MT-BN2.4.20	4	20	4	2
	MT-BN2.6.25	6	25	6	2
	MT-BN2.8.25	8	25	8	2

T.C.T. Brazed Straight Router

	PART NO	C.D (mm)	C.L. (mm)	S.D. (mm)	Z
	MT-SB.3.06.20	6	20	6 - 1/4"-8	2
	MT-SB.3.08.25	8	25	6 - 1/4"-8	2
	MT-SB.3.09-25	9	25	6 - 8 - 12	2
	MT-SB.3.10.32	10	32	6 - 8 -12	2
	MT-SB.3.12.32	12	32	8 - 12	2
	MT-SB.3.15.32	15	32	8 - 12	2
	MT-SB.3.19.32	19	32	12	2
	MT-SB.3.25.38	25	38	12	2
	MT-SB.3.32.38	32	38	12	2
	MT-SB.3.38.38	38	38	12	2

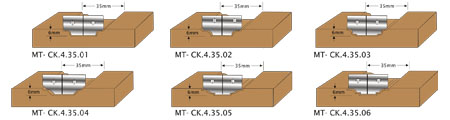

CNC Multi Profile Router Bits (Helix Angle)

(Flush Door / Chip Board/MDF) (Center T.C.T. Knives)

	PART NO	C.D (mm)	C.L. (mm)	S.D. (mm)	Z
	MT-CK.4.35.01	35	62	12 / 16 / 20	1

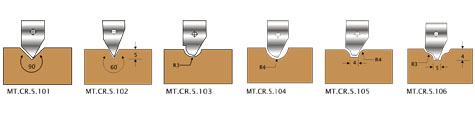

CNC Multi Profile Router for Carving (T.C.T. Replaceable Knives)

PART NO. C.D. (mm) Profile Depth (mm) S.D. (mm) Z Knives Code Screw Code MT-CR.5.101 12 6 12/16/20 1 201215 M3506

Straight Router Bits with Replaceable Knives for Laminates

	PART NO	C.D (mm)	C.L. (mm)	S.D. (mm)	Z
	MT-SR.6.12.30	12	30	8	1
	MT-SR.6.12.12	12	30	12	1
	MT-SR.6.14.30	14	30	12	2
	MT-SR.6.14.50	14	50	12	2
	MT-SR.6.16.30	16	30	12	2
	MT-SR.6.16.50	16	50	12	2

T.C.T. Brazed Pointed V-Groove Bits

	PART NO	Degree (mm)	H (mm)	D (mm)
	MT-VG.7.107	90	9.5	19
	MT-VG.7.108	90	11	22
	MT-VG.7.109	90	12.5	25
	MT-VG.7.110	90	16	32
	MT-VG.7.111	120	13	32
	MT-VG.7.112	140	10	32
	MT.VG.7.113	150	9.5	32

T.C.T. Brazed Round Nose Bits

	PART NO	W (mm)	H (mm)	A (mm)
	MT-MS.8.114	28	14	14
	MT-MS.8.115	30	15	15
	MT-MS.8.116	32	16	16
	MT-MS.8.117	35	17.5	17.5
	MT-MS.8.118	38	19	19
	MT-MS.8.119	40	20	20

T.C.T. Brazed Classical Design Bits

	PART NO	W (mm)	H (mm)	A (mm)
	MT-MS.9.120	28	6	13
	MT-MS.9.121	30	6	14
	MT-MS.9.122	32	6	15
	MT-MS.9.123	35	6	16
	MT-MS.9.124	38	8	17
	MT-MS.9.125	40	8	18

T.C.T. Brazed Beading Design Bits

	PART NO	W (mm)	H (mm)	A (mm)
	MT-MS.10.126	28	6	13
	MT-MS.10.127	30	6	14
	MT-MS.10.128	32	6	15
	MT-MS.10.129	35	6	16
	MT-MS.10.130	38	8	17
	MT-MS.10.131	40	8	18

T.C.T. Brazed Plung ogee Fillet Bits

	PART NO	W (mm)	H (mm)	A (mm)
	MT-MS.11.132	28	6	13
	MT-MS.11.133	30	6	14
	MT-MS.11.134	32	6	15
	MT-MS.11.135	35	6	16
	MT-MS.11.136	38	8	17
	MT-MS.11.137	40	8	18
