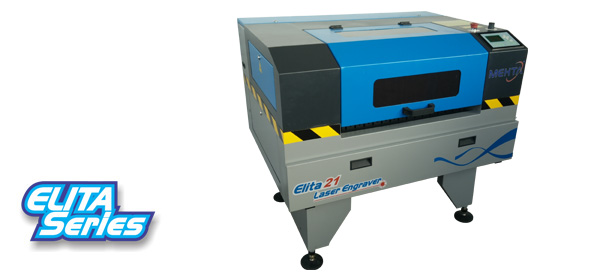

Elita 21 Laser Engraver
Features of Elita-21
- Elita 21 is with high speed USB and offline control system, the split frame structure, working is stable and reliable, it has wide range of application and economical – utility model.
- Elita 21 is of high accuracy, fast, stable performance, simple operation and easy maintenance.
- Elita 21 can engrave and cut variety of non-metallic materials like Acrylic, MDF, Paper, Fabric, Leather etc.
- Elita 21 is best for Letter Cutting, Trophy and Awards, Plaques, Gifts, Photo Album Cover etc.
HONEY COMB TABLE | CARRIAGE | CHILLER |
Applications of Elita-21
Technical Specifications of Elita-21
Model | ELITA-21 |
Working Area | 600 x 400 mm |
Laser Type | Sealed-off Glass CO2 Laser Wavelength : 10.6um |
Laser Power | 60 W |
Laser Tube Cooling | Water Cooling |
Control System and Driver | High Speed DSP Control System, Stepper Motor, High Sub division driver |
Engraving Speed | 0-900 mm/s |
Cutting Speed | 0-400 mm/s |
Reposition Accuracy | <±0.01 mm |
Minimum Letter Size | 1 mm (English Fonts) |
Machine Power | ≤1000 W |
Supported Format and Software | PLT, DST, DXF, BMP, AI, Support AutoCAD, CorelDraw output directly |
Working Environment | Temperature: 0-45°C. Humidity : 5%-95% (No condensed water) |
Voltage | AC220V/110V±10%, 50HZ/60HZ |
Above Specifications are subject to change without prior notice. |
