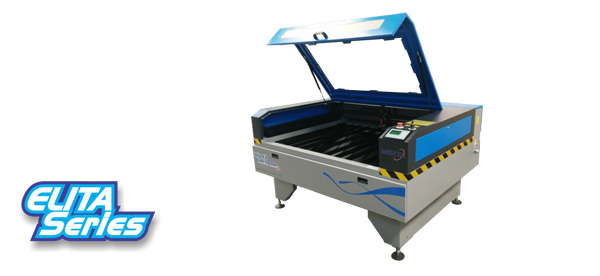

Elita 43 Laser Engraver

Features of Elita 43

• Special design of carriage where 2" lens or 5" lens both can be used. 5" lens gives you better quality of cutting, if the thickness of material is more than 10mm and 2" lens should be used for cutting media less than 10mm thickness.
• High quality touch panel display - very easy to use
• Pass through design for long length of work piece in Y-axis direction
• Machine is provided with foot-mounting legs so that there is no vibration in machine and machine can be adjusted on zero level
• As it is made in India, No waiting period for spare parts & quick service support
• Machine is provided with heavy duty compressor which has Air-assist combining adjustable focus systems in coaxial jet air to prevent cutting edge from burning down
• Laser cut software with window based software enhance cutting speed and angel / curve performance
• Laser seals the edges of fabric while cutting
• Maximum cutting thickness of acrylic - 20mm
• High quality of chiller unit for better performance and long life of laser tube

Libra Various Lens Size LEO Emergency Switch

Additional Equipments Of Elita 43

Chiller Chiller (Included)
1. Compact design, convenient for installation and operation.
2. All refrigeration components are international brand, which can offer good and stable cooling effect.
3. The water cycling system is consisted of stainless steel pump with instant flow and high lift, stainless steel water tank and PVC connectors.
4. Equipped with flow switch which can output protect signal.
5. High and low temperature alarm signal output, which can output normal close signal as options.
6. Digital display temperature controller, with multiple function settings and error alarming.

Applications of Elita 43

LEO Laser Cutting Applications LEO Laser Cutting Applications LEO Laser Cutting Applications
LEO Laser Cutting Applications LEO Laser Cutting Applications LEO Laser Cutting Applications
LEO Laser Cutting Applications LEO Laser Cutting Applications LEO Laser Cutting Applications
Libra Appliction LEO Laser Cutting Applications

Technical Specifications of Elita 43

X, Y Cutting Area 4' x 3' (1220 x 918 mm)
Laser Power 80W
Travelling Speed 0.1 to 400 mm/s
Reposition Accuracy ±0.025mm
Minimum Letter Size 1 mm (English Font)
X Y Movement System Linear guide way
Z - Axis Movement Manual
Power Adjustment 0.1 to 100%
Maximum Cutting Thickness Up to 20mm Acrylic
Driving System Stepper Motor
Operating System Windows XP, Windows 7 32bit
Interface USB interface
Supported Format PLT, AI, DXF, BMP
Working Voltage Single Phase 220V/50Hz (Require Earthing)
Running Environment 45°C, Humidity 5% - 80%
Operating Display Touch Panel
Memory Buffer 100 MB (Max. 33 Files)
Overall Dimension 1525 x 1920 x 1100 mm
Weight 332 Kg
Power Consumption 2 KW
Above Specifications are subject to change without prior notice.
