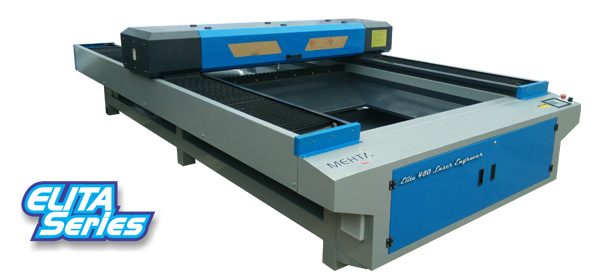

Elita 480 Laser Engraver

Features of Elita-480

X, Y Axis adopt round rail and belt transmission to make machine more stable
Stable and full equipped design concept, equipped with advanced industrial cooling system with anhydrous alarm automatic protection system, improve the stability and safety of continuous work. Full-equipped dust, anti pollution exhaust system, more attention to environmental protection.

Perfectly Cutting Material

• 30 mm Acrylic
• 10 mm MDF

Applications of Elita-480

Technical Specifications of Elita-480

Model LIBRA-480
Laser Tube 60, 80 , 100, 130, 150, 180 Watt
Power Working Area 4 x 8 Feet
Laser Type CO2, Sealed Laser Tube, Wavelength 10.6um
Cooling System Water Cooling
Power Adjustment 0-100% Stepless Control, 0-100% Adjustable in Software
Control and Driving High Speed DSP Control, Stepper Motor High Subdivide Driving
Engraving Speed 0-70000 mm/min
Cutting Speed 0-18000 mm/min
Working Voltage AC220V/110V ±10% 50Hz/60Hz
Position Accuracy ≤± 0.01mm
Consuming Power ≤ 2000 W
Running Environment Temperature: 0-45°C. Humidity : 5%-95% (free of condensed water)
Supported Format PLT, DST, DXF, BMP, AI. Support AutoCAD, CorelDraw output directly
Above Specifications are subject to change without prior notice.
