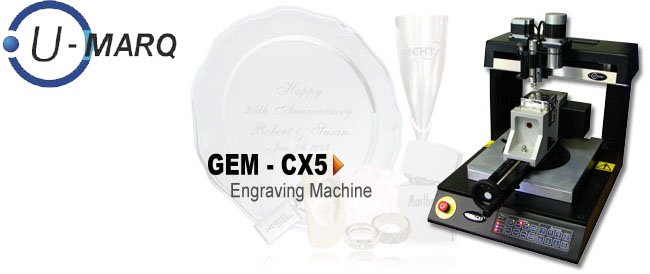

Desktop Tool Engraving Machine U-Marq GEM CX5
Overview of GEM - RX5 Engraving & Marking Machine
• Flat Engraving Surface (9" x 7")
• Maximum Vice Opening (11")
• Inside and Outside Cylindrical Engraving
• 5" Diameter Cylindrical Engraving
Applications of GEM - RX5 Engraving & Marking Machine
 |
Technical Specifications of GEM - RX5 Engraving & Marking Machine
| Flat work size | 9" X 7" ( 231mm x 182mm) |
| Cylindrical work size | 5" (127mm) diameter, 11" (280mm) length |
| Z-axis travel | 2.17" (55mm) |
| Z axis clearance | 4.3" (110mm) top of jaws |
| Maximum vice opening | 11" (280mm) |
| Spindle Motor Speed | 18,000 RPM |
| Power of spindle motor | 100W, 24W Brushless Hall Effect DC motor |
| Dimensions | 24"H x 16.5"W X x17"L (610mm x 420mm x 430mm) |
| Total Weight | 68 Kg |
| All above specifications are subject to change without prior notice. | |
