GX 1325 CNC Router
Performance and Features of GX 1325 CNC Router
• Heavy duty frame structure
• X, Y and axis are driven by AC SERVO motor (YASAKAWA) which gives more accuracy and speed than our LX Series and RX Series CNC Routers
• High positional accuracy, heavy work load and long life is ensured by HIWIN brand 30 mm square linear guidways.
• Original italian spindle gives you very stable, trouble-free, maintenance-free performance for long period of time.
• Fast speed and high accuracy ensured by gear transmission equipped on CNC router.
• Periodic lubrication maintenance provided by Automatic Lubrication System which gives long life to mechanical parts.
• If any electronic part get damaged during running operation, Auto Stop Mode Function stops the machine and so the tool or material doesn't get damaged.
• Axis drive system : X, Y - Rack. Z - Ball Screw.
• Working table is covered with rigid PVC sheet for long life of aluminum T slot table.
Optional Items
 |
|
| Vacuum Bed System With German Becker Pump | |
 |
|
| Vacuum Bed System With Ring Type Blower | |
 |
 |

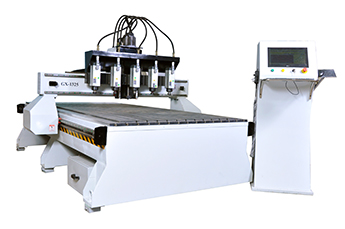

| Dust Collector | Multispindle |
 |
|
| Rotary Attachment | |
Applications
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
||
Technical specifications
| Models | GX - 1325 | GX - 1530 |
| Outer dimension of machine | 2190 x 3180 x 1800 mm | 2390 x 3680 x 1800 mm |
| Working Area (X, Y, Z) | 1300 x 2500 x 250 mm | 1500 x 3000 x 250 mm |
| Spindle | 6 KW Air Cooled,(HSD Italian) | 6 KW Air Cooled,(HSD Italian) |
| Spindle Speed | 18000 RPM | 18000 RPM |
| Maximum Traveling Speed | 30 mtr/min | 30 mtr/min |
| Cutting Tool Diameter | Ø3 to Ø16 mm | Ø3 to Ø16 mm |
| X and Y Axis Traveling | Rack & Pinion (Made in Taiwan) | Rack & Pinion (Made in Taiwan) |
| Table Structure | Heavy Duty Rigid Mild Steel Frame Structure | Heavy Duty Rigid Mild Steel Frame Structure |
| Operating System | High Speed NK 260 Integrated System | High Speed NK 260 Integrated System |
| Driving System | AC Servo Motor (JAPAN) | AC Servo Motor (JAPAN) |
| Weight | 1260 Kg | 1450 Kg |
| Power Supply | AC 440V/3PH | AC 440V/3PH |
| Weight | 1400 Kg. | 1600 Kg. |
| Above specifications are subject to change without prior notice | ||
