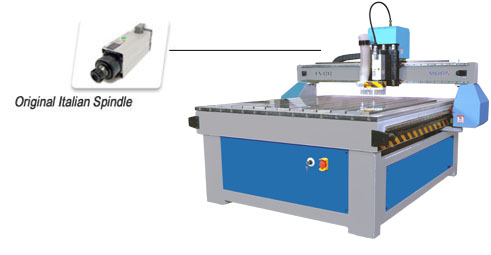

LX 1212 CNC Router

Performance and Features of LX 1212 CNC Router

• 25 MM Linear Guidways for high positional accuracy and long life with high motion accuracy.
• Original Italian spindle gives you very stable, trouble-free, maintenance-free performance   for long period of time.
• Fast speed and high accuracy ensured by gear transmission equipped on CNC Router.
• High accuracy and heavy workload ensured by imported square rail.
• Periodic lubrication maintenance provided by automatic lubrication system.
• Axis Drive system : X, Y - Rack, Z-Ball Screw.
• Working table is covered with rigid PVC sheet for long life of aluminum T slot table.

Handheld Controller

Handheld Controller allows operator to set job parameters, jog the machine, perform system tests and download jobs from computer via USB cable and USB key also.

Optional Items

Vacuum Bed System With German Becker Pump

Vacuum Bed System With Ring Type Blower


Dust Collector Multispindle

Rotary Attachment

Applications

CNC Appliactions CNC Appliactions CNC Appliactions
CNC Appliactions CNC Appliactions CNC Appliactions
CNC Appliactions CNC Appliactions CNC Appliactions
CNC Engraving Door Sample

Technical specifications

Models LX - 1212
Outer Dimension 1902 x 1750 x 1541 mm
Working Area (X, Y, Z) 1200 x 1200 x 200 mm
Spindle 3 KW Air Cooled (HSD Italian)
Spindle Speed 18000 RPM
Distance between Bed and Gentry 200 mm
Maximum Traveling Speed 20 mtr/min
Cutting Tool Diameter Ø3 to Ø14 mm
Repeated Location 0.025 mm
Operating System DSP - Hand Held Controller
Driving System Stepper Motor
Weight 650 Kg
Power Supply AC 230V/1PH
Above specifications are subject to change without prior notice
